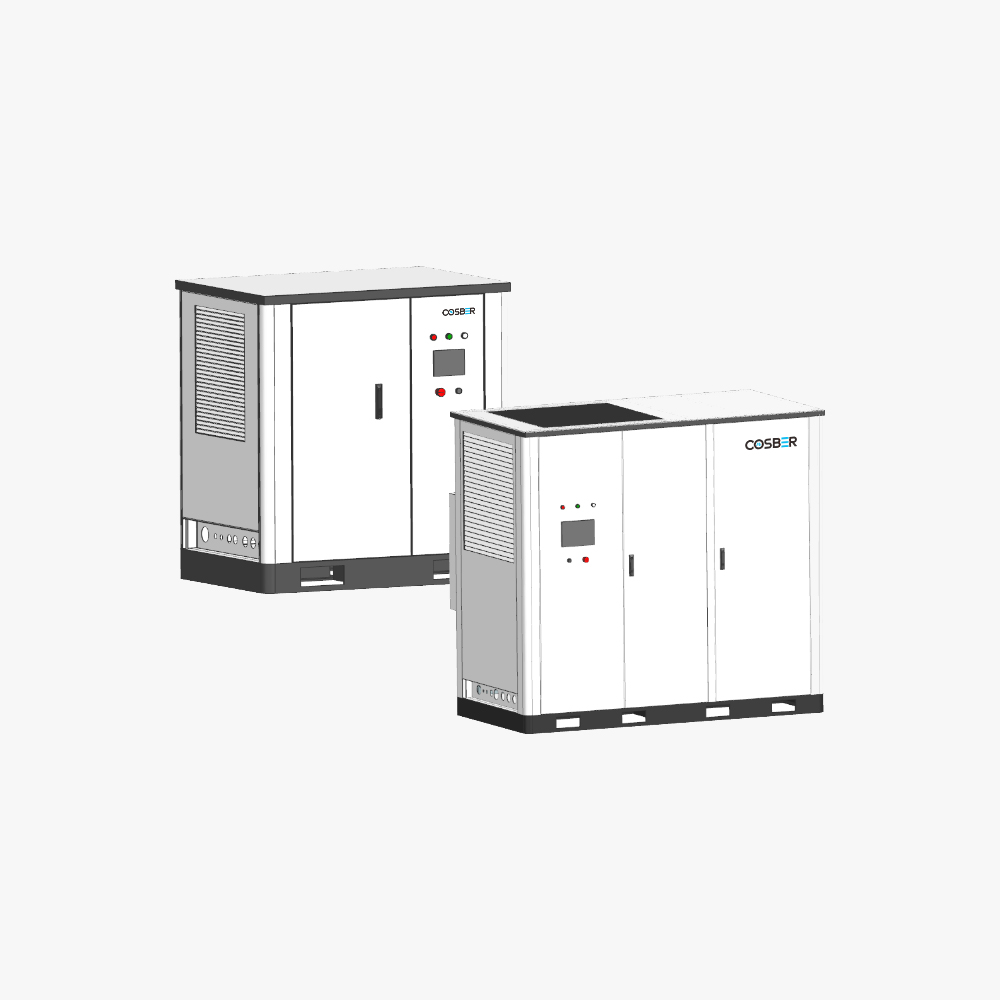

10kW+ Fuel Cell Systems

Cosber's fuel cell generation products use proton exchange membrane fuel cell technology. The systems are compact with small footprint, and capable of fast-start and shutdown. They are easy to achieve automatic control and unattended, suitable for distributed and centralized power, generation purposes.

300W Fuel Cell System

3kW Fuel Cell System

9kW Fuel Cell Power Generator

Dual-Pack Metal-Hydrogen Charging Platform

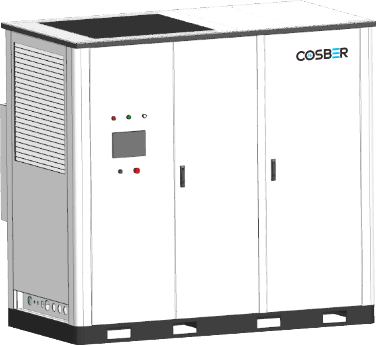

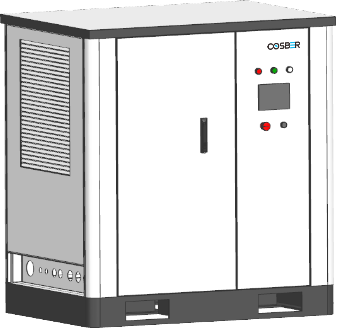

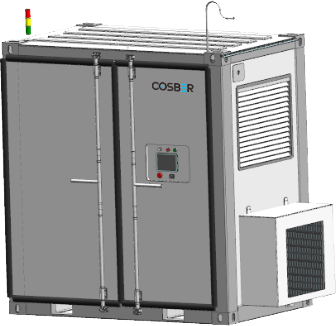

DC Output Cabinet	AC output cabinet	Customized cabinet

Product specifications

Type	C-FCS-10D	C-FCS-10A	C-FCS-30D	C-FCS-30A	C-FCS-50D	C-FCS-50A
Item	DC Output	AC Output	DC Output	AC Output	DC Output	AC Output
Net output（kW）	10		30		50
Output mode	Grid connection		Grid connection		Grid connection
Fuel cell system number/set	1		1		1
Output pressure (V)	DC40-65V	AC 380V, 50Hz	DC500-700V	AC 380V, 50Hz	DC500-700V	AC 380V, 50Hz
Dimension ( L×W×H)m	0.9x0.8x1.25		1.3x0.9x1.4	2.3x1.3x2.3	1.3x0.9x1.4	2.3x1.3x2.3
Weight（ton）	0.2	0.25	0.5	1.2	0.7	1.5
Efficiency (LHV,Waste heat utilization)	45% - 53%	41% - 48%	49% - 57%	47% - 55%	46% - 57%	44% - 55%
Efficiency (LHV,Self heat dissipation)	44% - 52%	39% - 46%	47% - 57%	46% - 55%	45% - 57%	43% - 55%
Environment temperature（℃）	-10℃ to +40℃		-30℃ to +45℃		-30℃ to +45℃
Humidity（%RH）	0-95		0-95		0-95
Start duration（s）	<30		<30		<30
Low temperature start（min）	<15min @ -10℃		<15min @ -30℃		<15min @ -30℃
Hydrogen inlet presssure（MPa）	0.6-1		1±0.1		1±0.1
Hydrogen purity	≥99.97%		≥99.97%		≥99.97%
Hydrogen flow rate（Nm /h）	≤9.3		≤22		≤40
Hydrogen inlet temperature（℃）	≤50		≤50		≤50
Noise（db）	≤75		≤75		≤75
Communication	Support CAN, mosbus RTU, modbus TCP
Power	1kW，AC220V		5kW，AC220V
Note: Off-grid mode, storage battery, and low hydrogen inlet pressure mode can be configured as needed.
