The Smart H₂ Energy Platform for Interlligent Energy Storage & Generation





















Smart H₂ Energy Platform

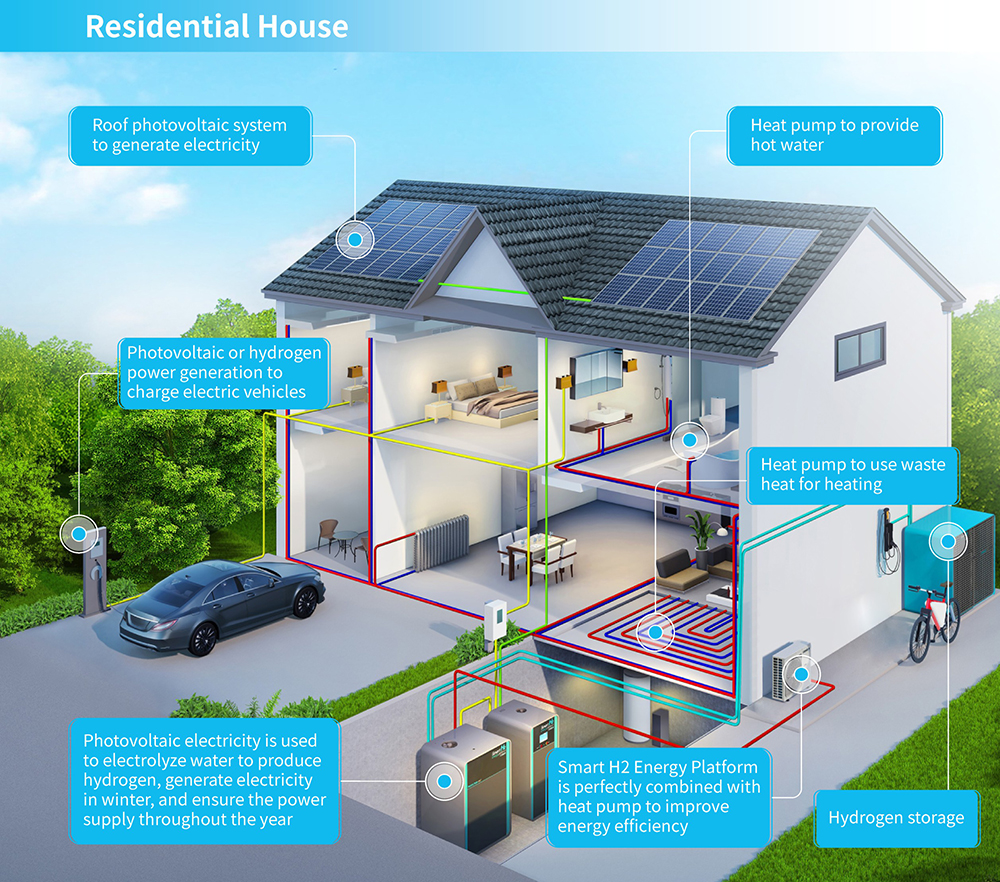

Meet the Various Requirements of Household and Commercial Scenarios






Family energy independence, cross-season energy storage and off-grid power supply





With the goal of global carbon neutrality, enterprises need to reduce carbon emissions and protect the environment. We work
together to combat the climate change, reduceglobal warming, and enhance the social reputation of enterprises.

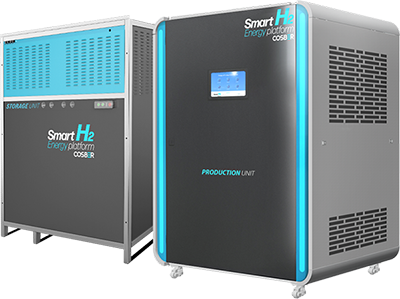

Hydrogen Power Cube

▪ Modular design, easy installation and fast delivery.
▪ Intelligent integrated control, multi-energy co-generation.
▪ Ultra-Security Designs, ensure user safety.

Ultra-Safety Designs

Module	Item	HPC-1000	HPC-2000	HPC-3000	HPC-4000	HPC-5000
Energy Storage System(ESS)
(optional)	Inverter qty.	1 set		2 sets		3 sets
	PV maximum input power	11kW		11kW*2		11kW*3
	Rated input and output power	10kW		10kW*2		10kW*3
	Mains input and output voltage	230/380VAC,50/60Hz
	Battery voltage	40-60VDC
	Lithium-ion battery type	LiFePO4
	Lithium-ion battery rated capacity	0-30kWh		0-60kWh		0-90kWh
Hydrogen Production and Power Generation Module
	Electrolyser (AEM)
	Rated hydrogen production rate	0.5Nm³/h	0.5Nm³/h	1Nm³/h	1.5Nm³/h	2Nm³/h
	Output pressure	Up to 35 bar
	Auxiliary electrolyte	1% KOH solution
	Nominal power consumption	4.8kWh/Nm³ (beginning of life)
	Hydrogen output purity(%)	>99.99%
	Fuel Cell(PEMFC)
	Fuel cell stack cooling	Water cooling
	Fuel cell rated power	10kW
	Fuel cell system efficiency(%)	≥85%, and the operating temperature is 60-75°C
	Control voltage	48VDC
	Fuel cell hydrogen input(%)	>99.97%,6-10bar
Hydrogen Storage System(HSS)
	Hydrogen storage tank	Single tank:110L, working pressure 350 bar, 20 tanks per group
	Equivalent electricity capacity	1 group, 1000kWh	2 groups, 2000kWh	3 groups, 3000kWh	4 groups, 4000kWh	5 groups, 5000kWh
	Compressor working pressure	350 bar
	Power input	220VAC/50Hz/1.5kW
	Buffer tank	4x70L,with the maximum working pressure of 200 bar
Heat Pump
		FloorHeating		Radiator Heating	Cooling
	Ambient temperature(DB/WB)	7℃/6℃		7℃/6℃	35℃/-
	Water temperature (water inlet/outlet)	30℃/35℃		50℃/55℃	12℃/7℃
	Heating	2.50-6.95kW		2.00-5.80kW	1.20-4.50kW
	Input power	0.41-1.48kW		0.43-1.86kW	0.26-1.55kW
	COP	6.10-4.68		4.63-3.11	4.62-2.90
	Power supply	220-240V/1PH/50Hz



Hydrogen Production and Power Generation Module
Dimension	(LxWxH)1340x1100x2180mm
Weight	0.8ton



Hydrogen Storage System(HSS)
Dimension	(LxWxH)2034x1725x2205mm
Equivalent electricity capacity	1000kWh（HPC1000）

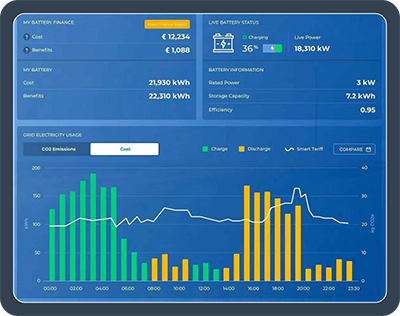

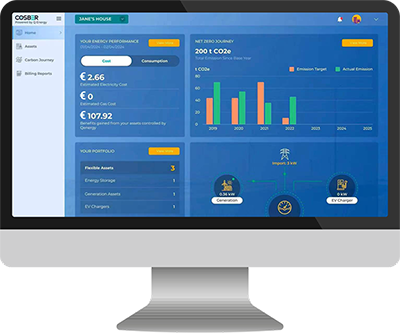

Cosber Smart Energy Management System

Reduction of energy costs and carbon emissions is optimized by advanced AI analytics and automation. The management system monitors the energy consumption, costs, and carbon emissions. It also displays real-time performance, and demonstrates the energymanagement achievement with monthly and annual data.

	▪ Carbon emission reduction target setting and carbon emission monitoring.
	▪ Monthly energy saving and cost saving report.
	▪ Daily/weeklyenergy consumption warning.
	▪ Daily/monthly/annual photovoltaic power generation amount.
	▪ Hydrogen production volume and power generation   statistics.
	▪ Economic income statistics.
	▪ One-stop monitor all energy consumption and bill data.
	▪ Remotely supervises energy asset.



		▪ Operation monitoring
		▪ Operation statistics
		▪ Fault alarm
		▪ Information prompts
		▪ Equipment maintenance
		▪ System settings

Application Scenario 1: Hydrogen Energy Showroom-“Zero-carbon emission” cottage

The “Zero-carbon emission” cottage adopts the Cosber smart Hydrogen energy platform,using the PV from the cottage's rooftop and carport for power

generation to produce and store hydrogen. This system can meet the user's demand for electricity,hot water and cooling throughout the year.

	Hydrogen Power Cube Model	HPC1000-0010 (0.5Nm /h)
	Heat Pump Model	KSBZ-7D/2A Heating 2.50 6.95kW Hot water 1.03m /h Cooling 1.20 4.50kW



Energy Storage System (ESS) & Hydrogen Production and Power Generation Module	Hydrogen Storage System (HSS)	Heat Pump

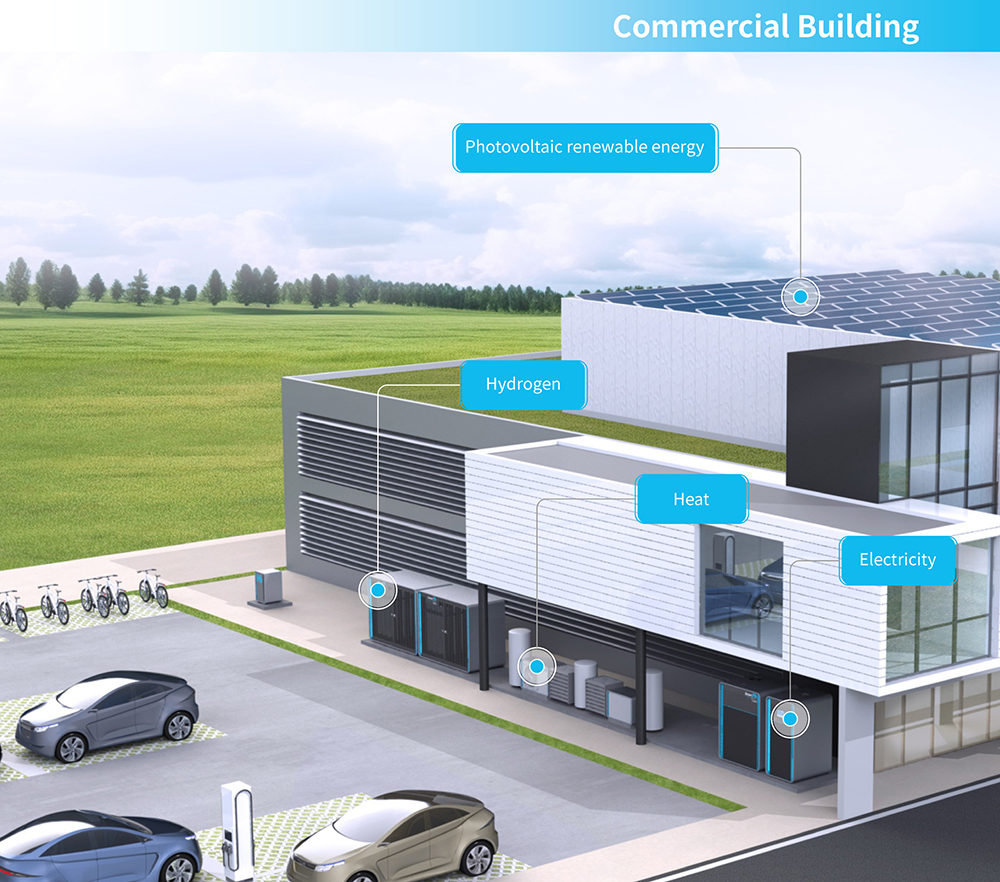

Application Scenario 2：Commercial Office Building-Low Carbon Office Building


In this modern commercial office building, the advanced clean energy technology of the Smart H2 Energy Platform is installed to achieve an integrated

energy supply solution for photovoltaic, lithium-ion batteries and hydrogen energy. During the day, the electricity generated by the photovoltaic system is directly used to power the building, including lighting, air conditioning, and various office equipment. The surplus electricity is stored in lithium-ion

batteries, or used to produce hydrogen by electrolysis of water. The hydrogen can be used to generate electricity at night, and also through the winter.

	Hydrogen Power Cube Model	HPC1000-T020 (2Nm /h)
	Lithium-ion Battery	30kWh x 3

Hydrogen Production and Power Generation Module	Hydrogen Storage System (HSS)	Energy Storage System (ESS)
