Key Features

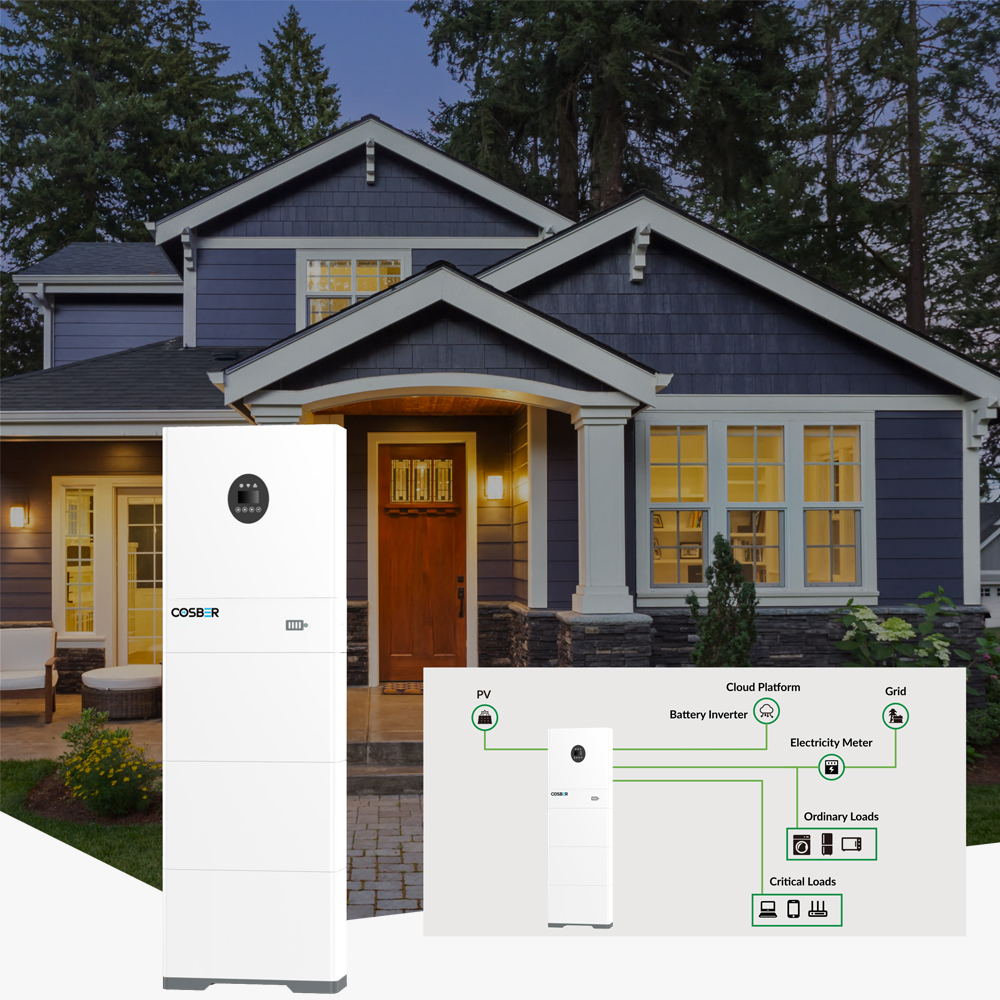

Hybrid Power Leverage：Support PV, grid and battery power for home use. Power priority management to maximum reduce electricity bill and backup                                               critical loads.

High Level Integration：DC coupled system, shortens power conversion flow to get low power loss.

All In One Design：Improve installation convenience,enhancing aesthetics.

Battery Modular D esign：Modular design: one storage system can support 1 to 3 battery units.

Quick Installation：Quick insert design to save installation time and cost.

IP65 Rating：IP65 water- and dust-proof,supports both indoor and outdoor installation.


Technical Data  (High Voltage)

Hybrid Inverter Model	RESS-3A-11.4-H1-6K	RESS-3A-15.2-H1-8K	RESS-3A-19-H1-10K
Output (On Grid)
Rated Output Active Power	6000W	8000W	10000W
Max. Output Apparent Power	6600VA	8800VA	11000VA
Rated AC Voltage	380V/400V/415V
AC Frequency Range	50/60Hz±5Hz
Wiring	L1/L2/L3-N-G
Output(Back Up)
Rated Output Apparent Power	6600VA	8800VA	11000VA
Rated Output Active Power	6000W	8000W	10000W
Rated Output Voltage	380V/400V/415V
Rated Output Frequency	50/60HZ
PV String Input
Recommended Max. PV input Power	9000W	12000W	15000W
Rated DC Voltage	700V
Operating Voltage Range	125V-1000V
Startup Voltage	125V
MPPT Voltage Range	180V-850V
Number of MPPTs	2
Max. Input Current per MPPT	16A
Max. Short-Circuit Current per MPPT	25A
Battery
Battery Type	LFP (LiFeP04)
Battery System Capacity	11.4KWH	15.2KWH	19KWH
Rated Battery Voltage	307.2V	409.6V	512V
Numbers of Battery Modules	3	4	5
Rated Discharging Current	25.9A
Rated Charging Current	18.5A
Cycle Life	>=6000 cycles @ 75% EOL,25°C,100% DoD
General
Dimensions W*H*D	625*1855*250mm	625* 2170* 250mm	625*2485* 250 mm
Net Weight	194kg	242kg	290kg
Operating Temperature Range	-10°C~+50°C, (derating above 40°C)
Max. Operating Altitude	2000m (noderating)
Relative Humidity Range	0-95% (No Condensation)
Ingress Protection Rating	IP65
Cooling	Natural convection
Noise	<35dB
Communication	RS485/CAN2.0/(WIFI/4G option)
Certification
Certification	IEC62619/UN38.3 (Battery) IEC/EN 62109-l&-2(PCS)

Technical Data  (Low Voltage)

Hybrid Inverter Model	RESS-1P-3.6K-L00	RESS-1P-6K-L00	RESS-3P-10K-L00
Output (On Grid)
Rated Output Active Power	3680W	6000W	10000W
Max. Output Apparent Power	7360VA	7360VA	11000VA
Rated AC Voltage	230V
AC Voltage Range	150-280V
AC Frequency Range	50/60HZ ±5Hz
Wiring	L-N-G
Output(Back Up)
Rated Output Apparent Power	4000VA	5000VA	10000VA
Rated Output Active Power	3680W	4600W	9200W
Rated Output Voltage	230V
Rated Output Frequency	50/60Hz
PV String Input
Recommended Max. PV input Power	4800W	7500W	20000W
Rated DC Voltage	400V
Max. Voltage Range	80V-580V
Startup Voltage	150V
MPPT Voltage Range	80V-560V
Number of MPPTs	2
Max. Input Current per MPPT	15A
Max. Short-Circuit Current per MPPT	18A		20A
Battery
Battery Type	LFP (LiFePO4)
Battery System Capacity	6.6KWH	13.2KWH	19.8KWH
Rated Battery Voltage	51.2V
Numbers of Battery Modules	1	2	3
Rated Discharging Current	91A	182A	273A
Rated Charging Current	65A	130A	195A
Cycle Life	>=6000 cycles @ 75% EOL ， 25°C,100% DoD
General
Dimensions W*H*D	725*1179*250mm	725*1619* 250mm	725*2449* 250mm
Net Weight	99kg	159kg	237kg
Operating Temperature Range	-10°C~+50°C, (derating above 40°C)
Max. Operating Altitude	2000m (no derating)
Relative Humidity Range	0-95% (No Condensation)
Ingress Protection Rating	IP65
Cooling	Natural convection
Noise	<35dB		<55dB
Communication	RS485/CAN2.0/WIFI/(4G option)
Certification
Certification	IEC62619/UN38.3 (Battery) IEC/EN 62109-l&-2(PCS )
