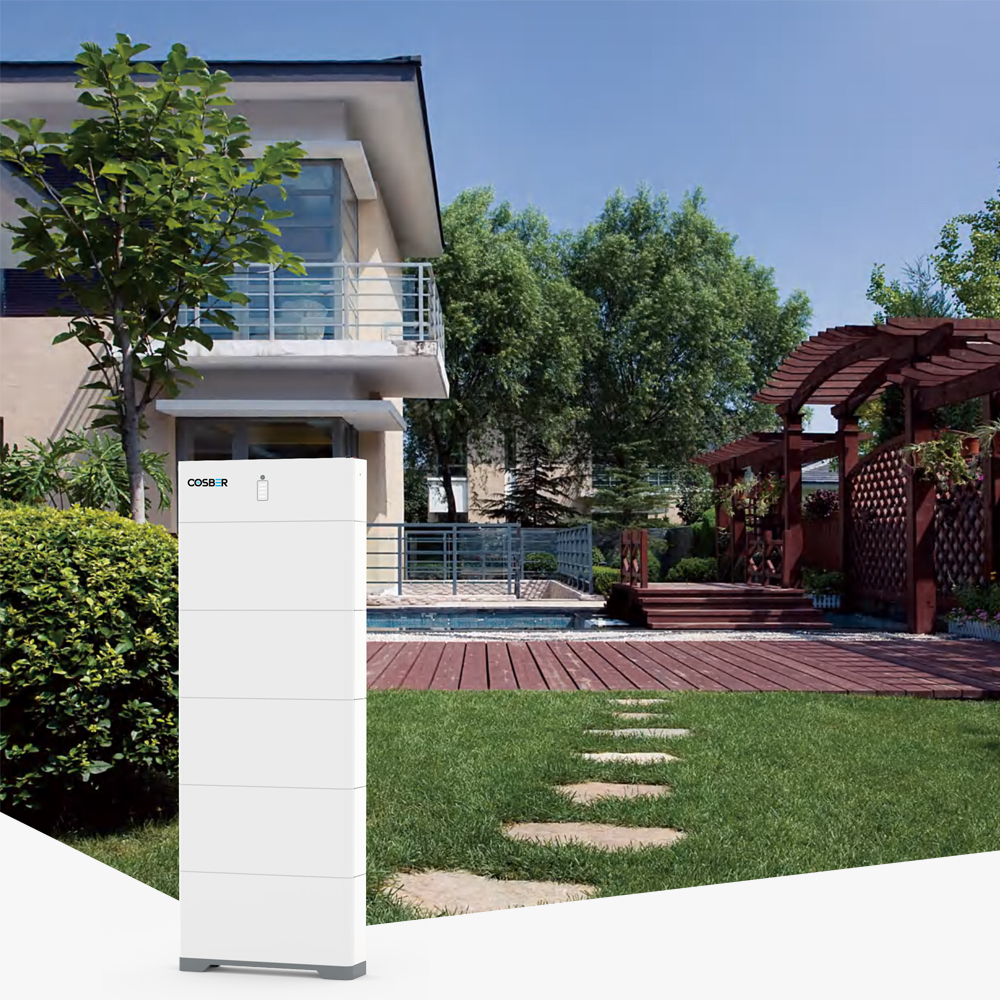

ESS-E20
ESS-E20
Residential Rechargeble Energy Storage System.
Key Features
Scalable Configuration: Modular design: one storage system can support 2 to 5 battery units. Systems can be connected in parallel to expand capacity
to a maximum of 57kWh.
High Safety: System design based on LFP batteries,Quick insert design to save installation which have greater thermal stability.
Quick KX Installation: Quick insert design to save installation time and cost.
Long Service Life: More than 6000 cycles at 100% charging and discharging.
IP65 Rating: P65 water- and dust-proof, supports both indoorand outdoor installation.
High Usage: The battery has high usage with usable energy upto 100%.
Technical Data (High Voltage)
Technical Data (Low Voltage)
Scalable Configuration: Modular design: one storage system can support 2 to 5 battery units. Systems can be connected in parallel to expand capacity
to a maximum of 57kWh.
High Safety: System design based on LFP batteries,Quick insert design to save installation which have greater thermal stability.
Quick KX Installation: Quick insert design to save installation time and cost.
Long Service Life: More than 6000 cycles at 100% charging and discharging.
IP65 Rating: P65 water- and dust-proof, supports both indoorand outdoor installation.
High Usage: The battery has high usage with usable energy upto 100%.
Technical Data (High Voltage)
| Model Number | RESS-BS-7.6-H0 | RESS-BS-11.4-H0 | RESS-BS-15.2-H0 | RESS-BS-19-H0 |
| System | ||||
| Battery System Capacity (kWh) | 7.6 | 11.4 | 15.2 | 19 |
| Usable Capacity (kWh) | 7.6 | 11.4 | 15.2 | 19 |
| Numbers of Battery Modules | 2 | 3 | 4 | 5 |
| Rated Battery Voltage (V) | 204.8 | 307.2 | 409.6 | 512 |
| Operating Battery Voltage Range (V) | 160-230 | 240-345 | 320-460 | 400 〜 576 |
| Rated Power (kW) | 5 | 7.5 | 10 | 12.5 |
| Rated Discharging Current (A) | 25.9 | 25.9 | 25.9 | 25.9 |
| Max Discharging Current (A) | 37 | 37 | 37 | 37 |
| Rated Charging Current (A) | 18.5 | 18.5 | 18.5 | 18.5 |
| Max Charging Current (A) | 25.9 | 25.9 | 25.9 | 25.9 |
| Peak Discharging/Charging Current (A) | 148/55.5@5S | 148/55.5@5S | 148/55.5@5S | 148/55.5@5S |
| System Net Weight (kg) | 105 | 149 | 193 | 237 |
| Communication | RJ45 (RS485, CAN, Dry contact) | |||
| Module | ||||
| Battery Module Number | RESS-BM-10237-H0 | |||
| Battery Module Capacity (kWh) | 3.8 | |||
| Rated Battery Module Voltage (V) | 102.4 | |||
| Battery Module Dimensions (W*H*D) (mm) Battery | 670*315*170 | |||
| Module Net Weight (kg) | 44 | |||
| Battery Control Box | RESS-BC-51237-H0 | |||
| Rated Voltage(V) | Rated Voltage(V) | |||
| Control Box Dimensions (W*H*D) (mm) | 670*220*170 | |||
| Control Box Net Weight (kg) | 12 | |||
| Environment | ||||
| Operating Temperature | (-10°C~50°C) | |||
| Operating Humidity | 0~95%RH | |||
| Operating Altitude | <=3000m | |||
| Installation | Wall-mounted or Floor type | |||
| Enclosure Protection Rating | IP65 | |||
| Warranty | lOyears | |||
| Cycle File | >=6000 cycles @ 75% EOL,25°C,100% DoD | |||
| Certification | ||||
| Certification | IEC62619/UN38.3 | |||
Technical Data (Low Voltage)
| Model Number | RESS-BS-6.6-L0 | RESS-BS-13.2-L0 | RESS-BS-19.8-L0 |
| System | |||
| Battery System Capacity (kWh) | 6.6 | 13.2 | 19.8 |
| Usable Capacity (kWh) | 6.6 | 13.2 | 19.8 |
| Numbers of Battery Modules | 1 | 2 | 3 |
| Rated Battery Voltage (V) | 51.2 | 51.2 | 51.2 |
| Operating Battery Voltage Range (V) | 40~57.6 | 40~57.6 | 40~57.6 |
| Rated Power (kW) | 5 | 8 | 10 |
| Rated Discharging Current (A) | 91 | 182 | 273 |
| Max Discharging Current (A) | 125 | 200 | 300 |
| Rated Charging Current (A) | 65 | 130 | 195 |
| Max Charging Current (A) | 100 | 200 | 300 |
| System Net Weight (kg) | 65 | 125 | 185 |
| Communication | RJ45 (RS485, CAN, Dry contact) | ||
| Module | |||
| Battery Module Number | RESS-BM-051130-L0 | ||
| Battery Module Capacity (kWh) | 6.6 | ||
| Rated Battery Module Voltage (V) | 51.2 | ||
| Battery Module Dimensions (W*H*D) (mm) | 725*440*170 | ||
| Battery Module Net Weight (kg) | 60 | ||
| Battery Power Distribution Box | RESS-PD-051130-L0 | ||
| Rated Voltage (V) | 51.2 | ||
| Control Box Dimensions (W*H*D) (mm) | 725*130*170 | ||
| Control Box Net Weight (kg) | 12 | ||
| Environment | |||
| Operating Temperature | (-10°C~50°C) | ||
| Operating Humidity | 0~95%RH | ||
| Operating Altitude | <=3000m | ||
| Installation | Wall-mounted or Floor type | ||
| Enclosure Protection Rating | IP65 | ||
| Warranty | lOyears | ||
| Cycle File | >=6000 cyc^es @ 75% EOL, 25°C, 100% DoD | ||
| Certification | |||
| Certification | 1EC62619/U L1973/U L9540A/UN38.3 | ||
